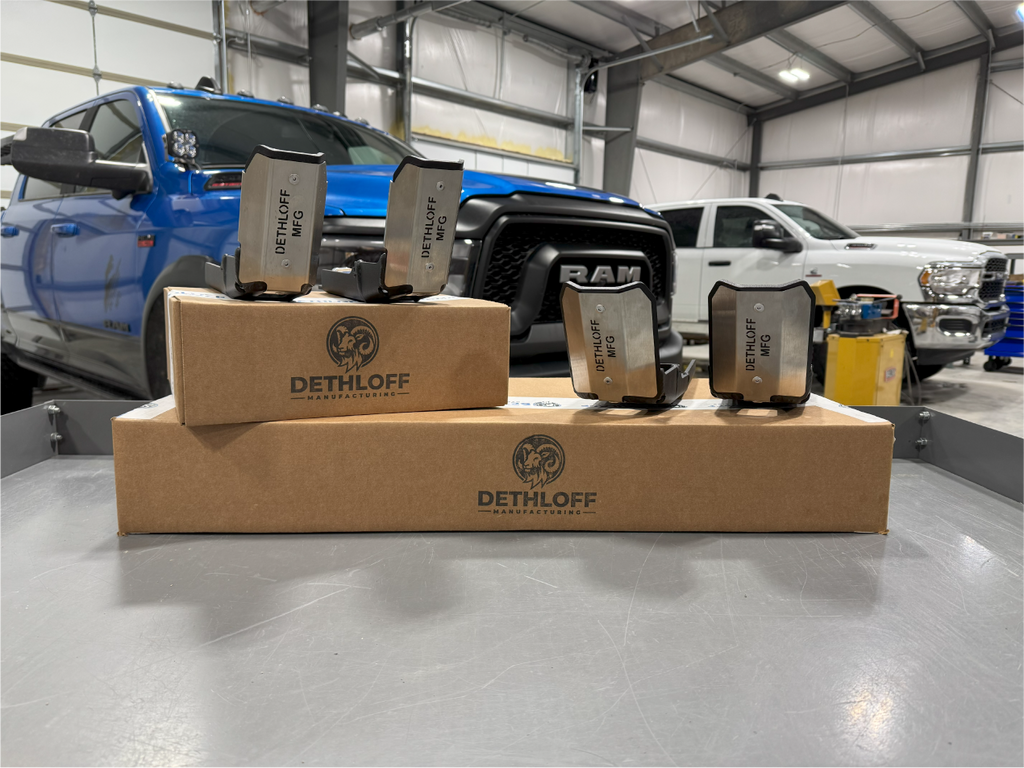

  • Four guards and a Dethloff box arranged on a bench, trucks in the shop behind

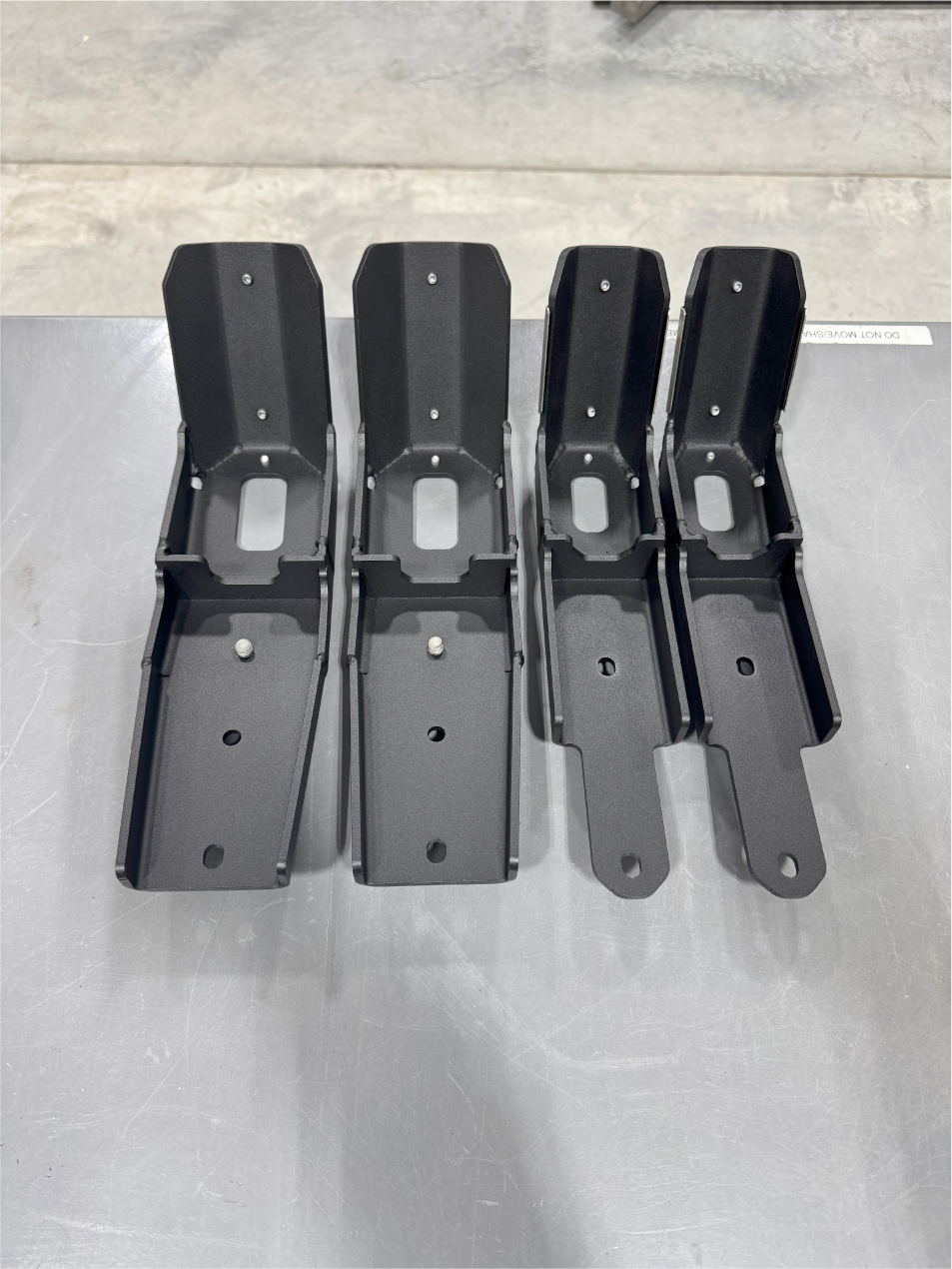

  • Four guards laid out on a steel bench with their clamp cutouts facing up

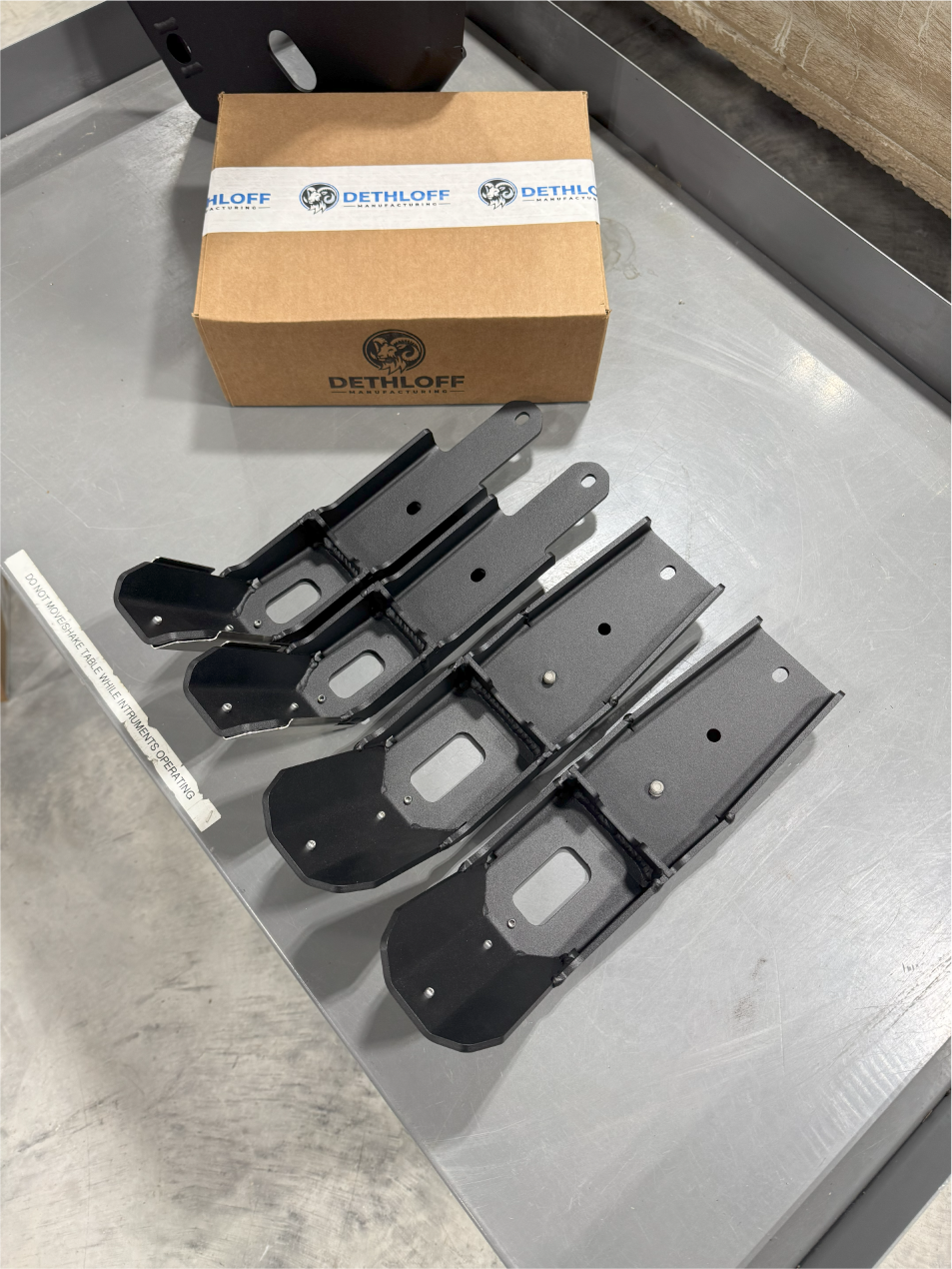

  • The four guards and a Dethloff box on the bench, seen from above

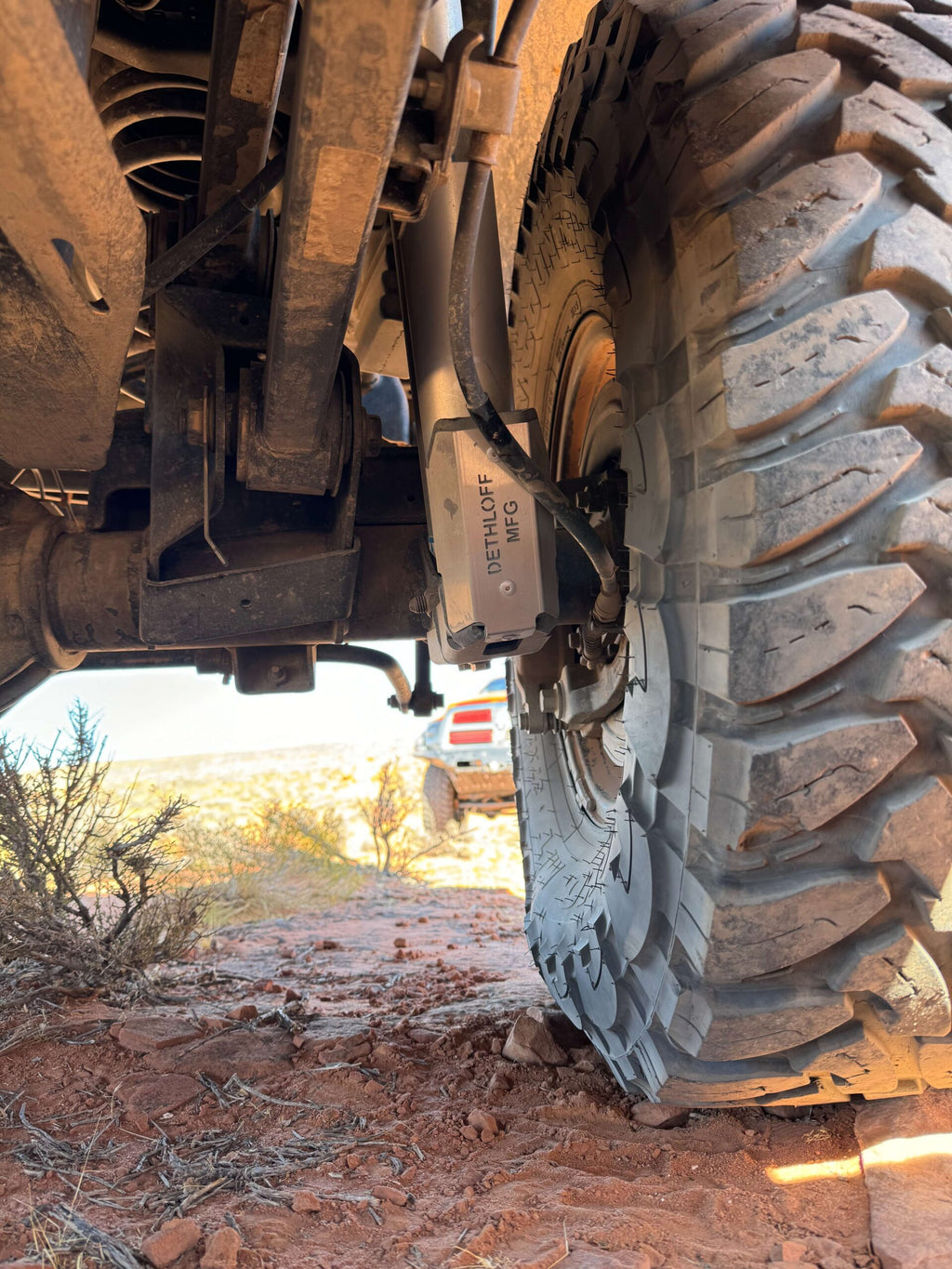

  • Guard fitted on the rear shock, seen from under the truck out onto red desert ground

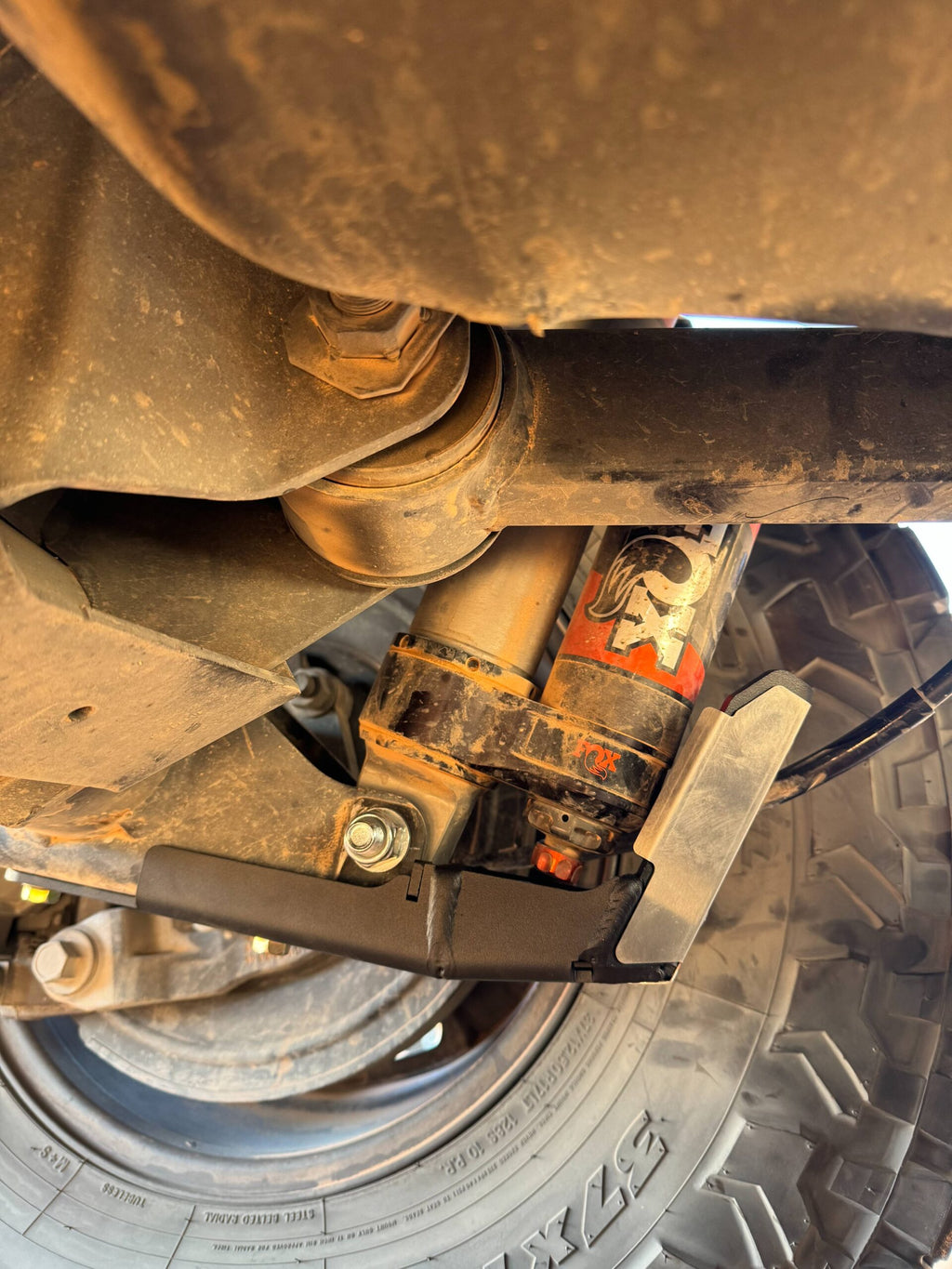

  • Guard fitted beside a Fox shock, seen from under the rear axle

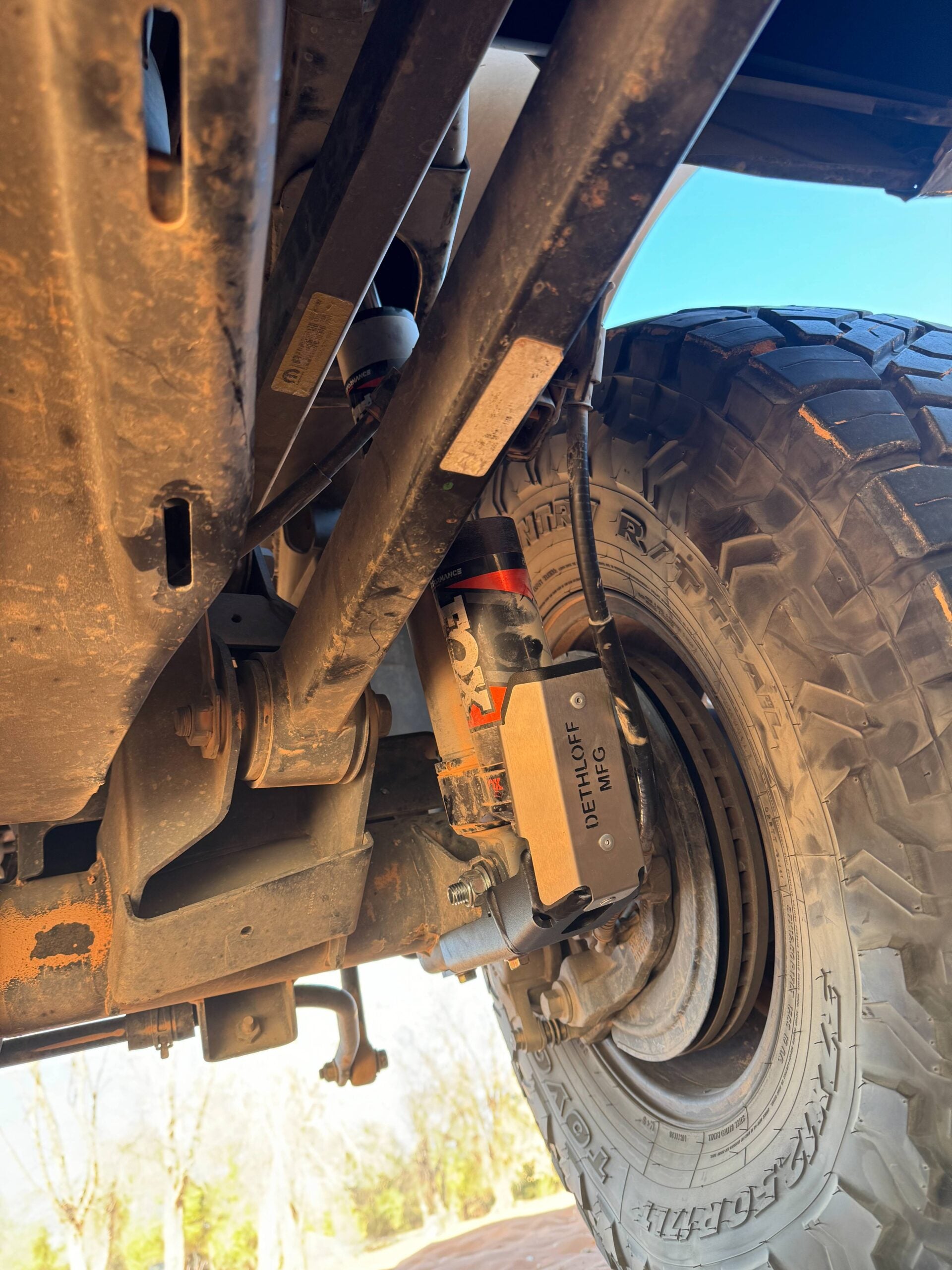

  • Under the rear of the truck with the guard in place behind the wheel

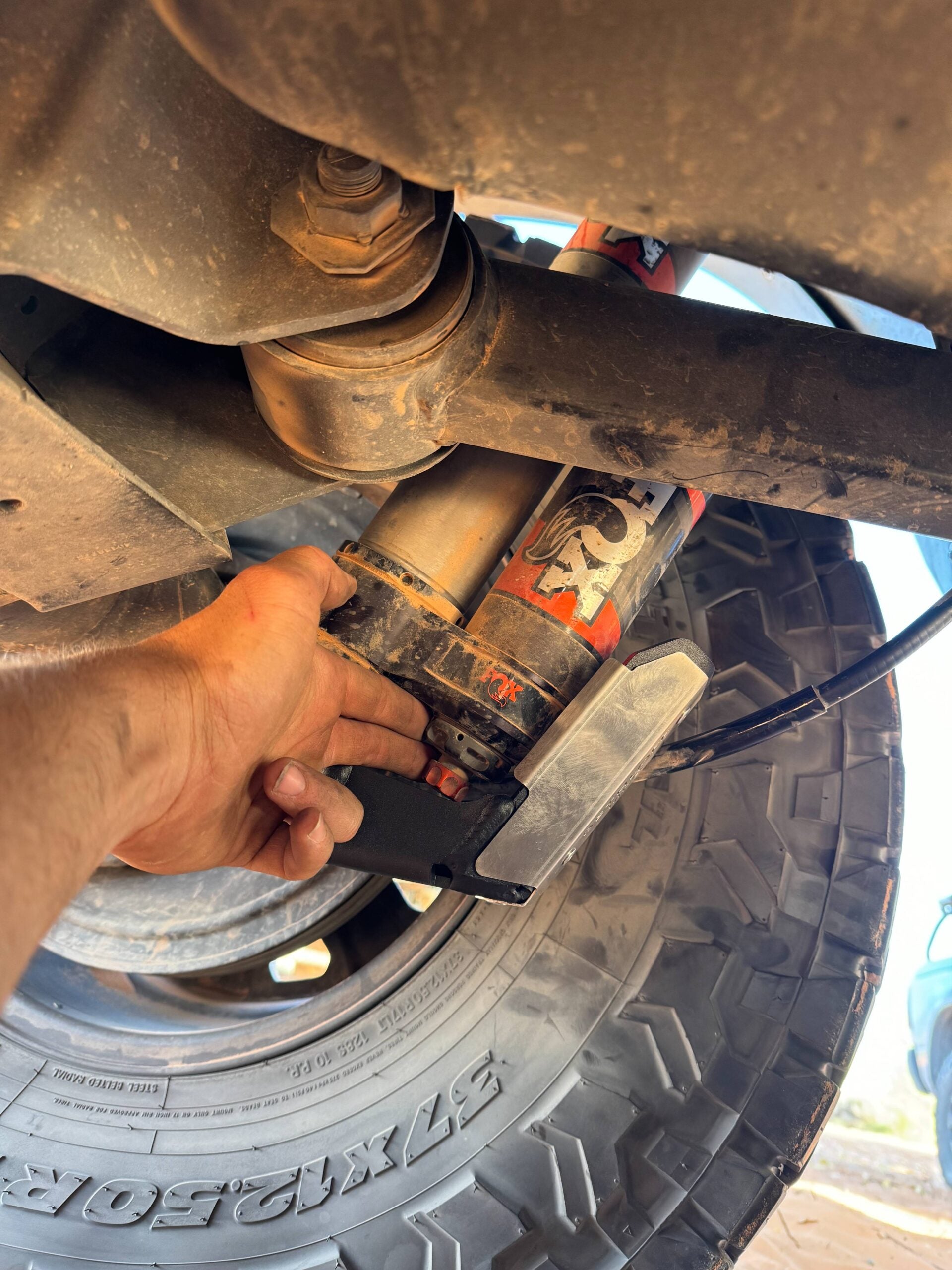

  • A hand holding the guard up against the shock body to show the fit

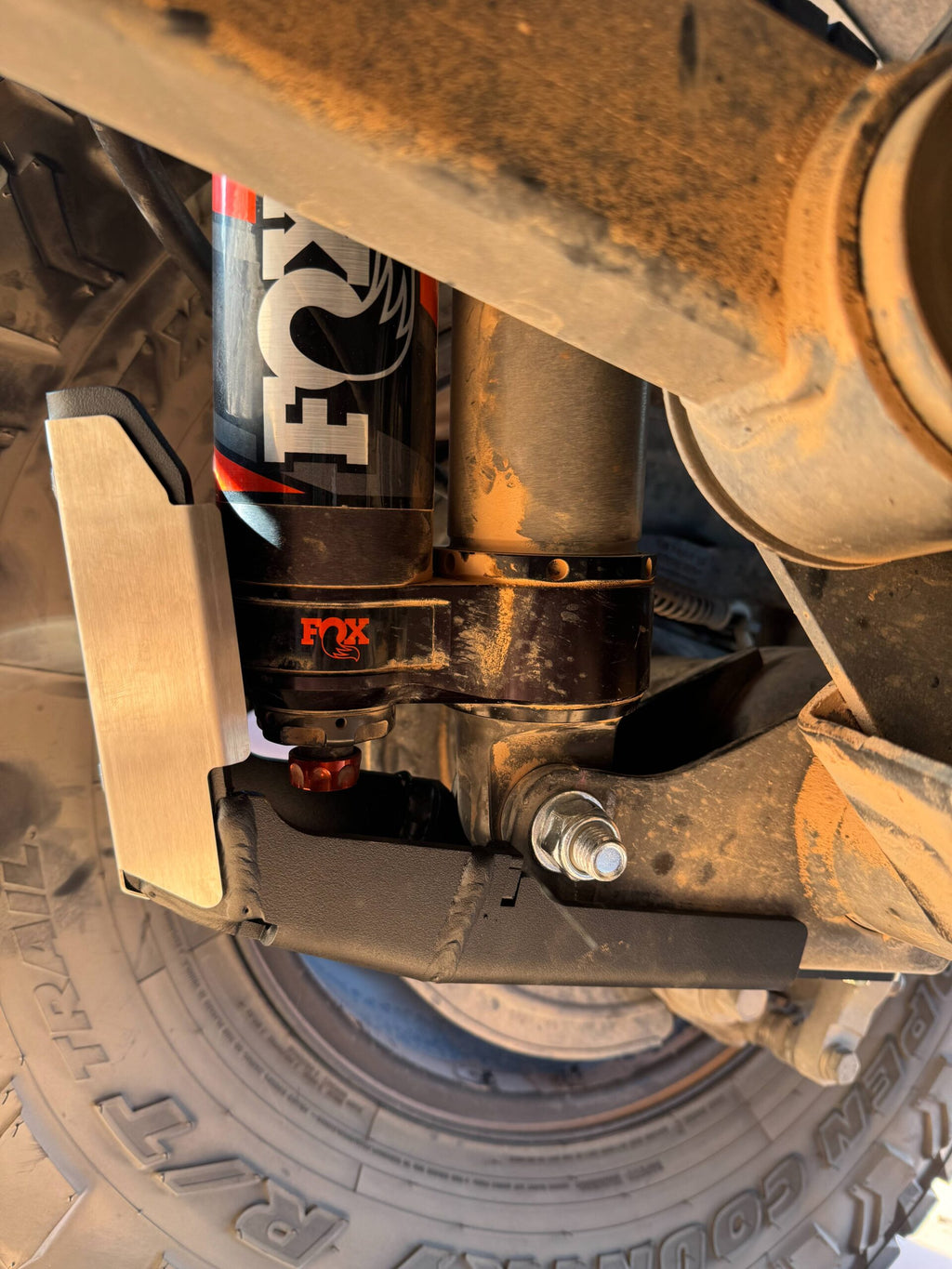

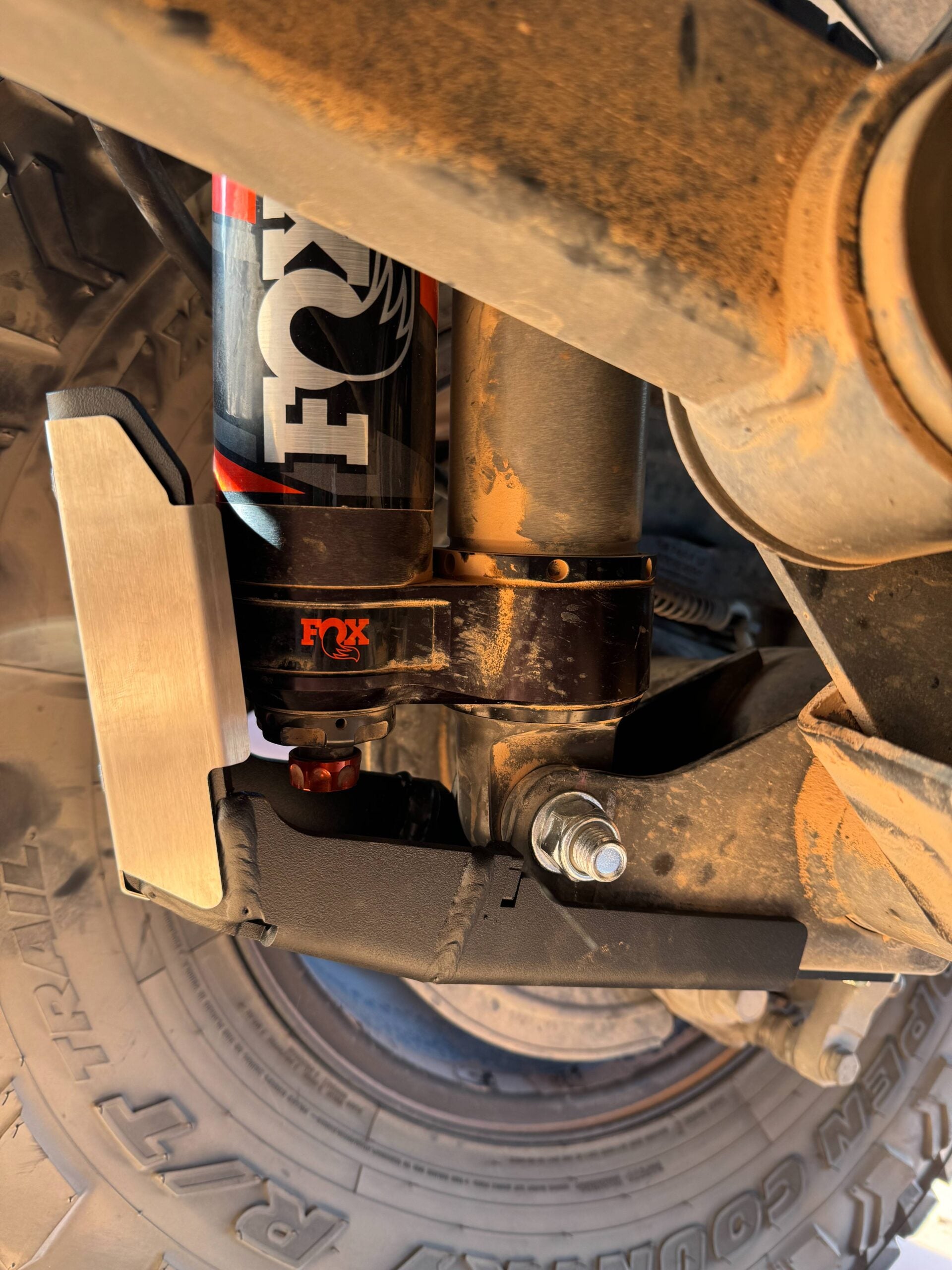

  • The guard shielding the lower body of a Fox shock, seen from under the axle

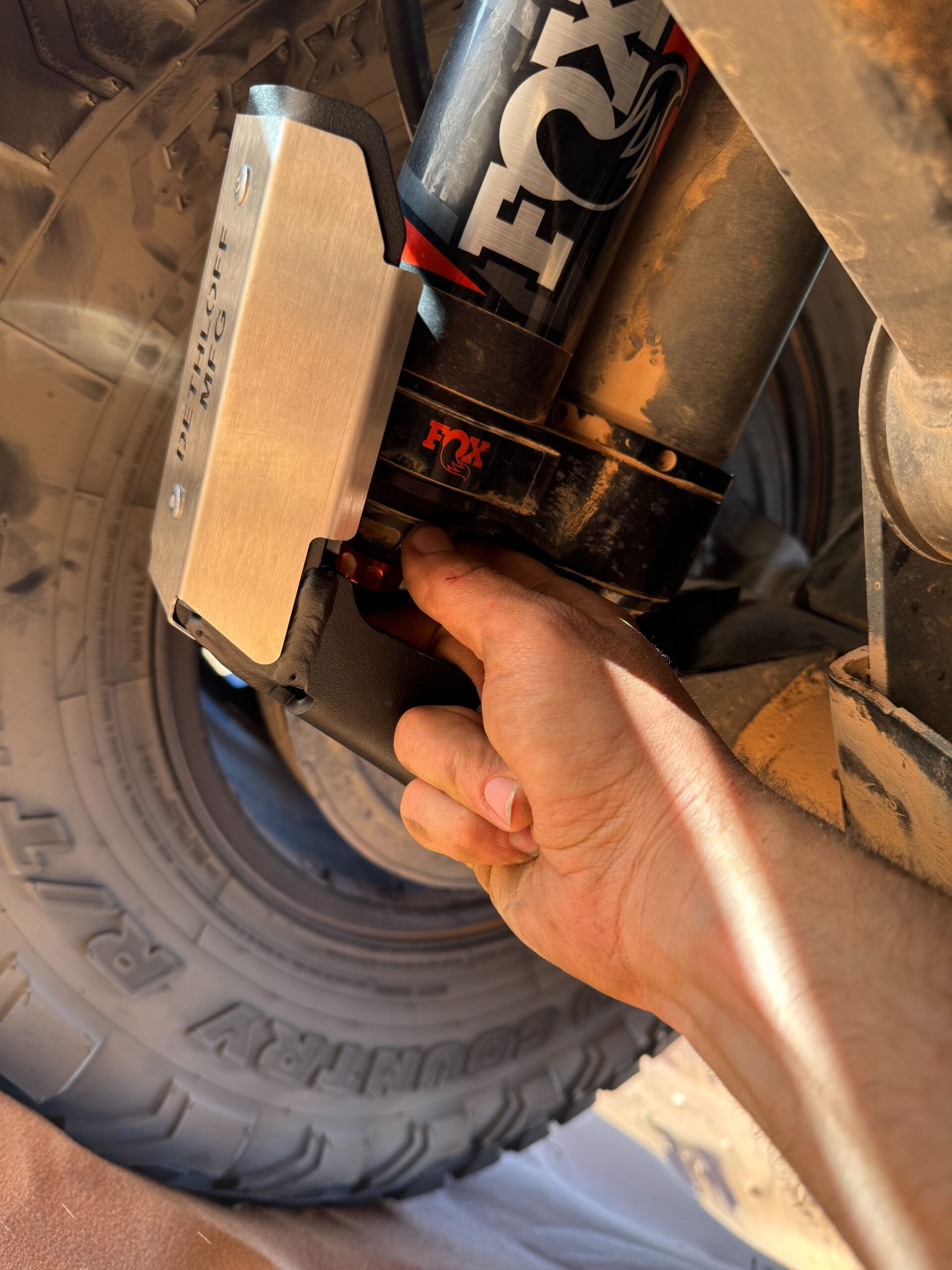

  • A hand fitting the guard around the shock above the tire

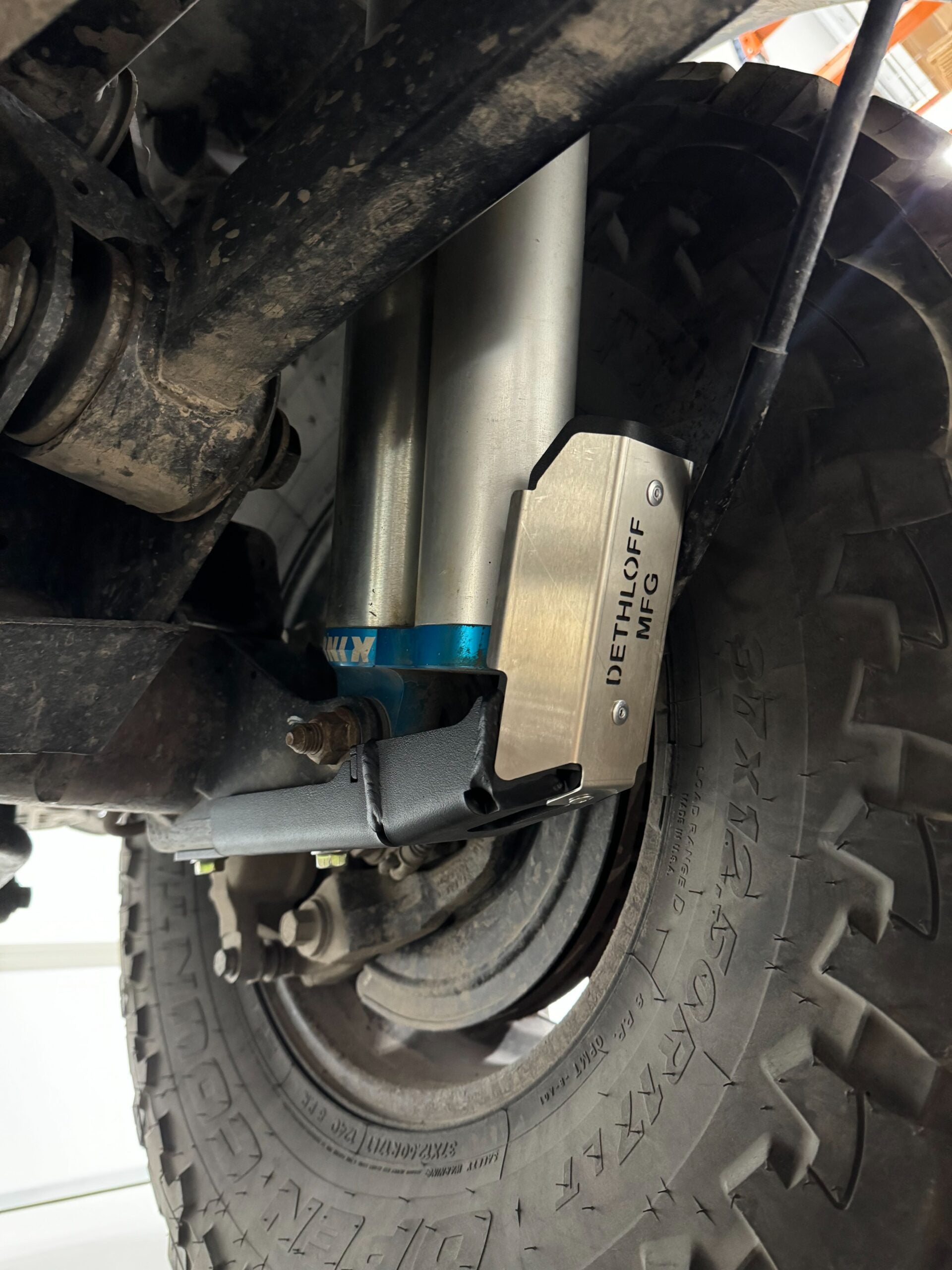

  • The guard bolted around a shock in the shop, badge visible above the blue shock body

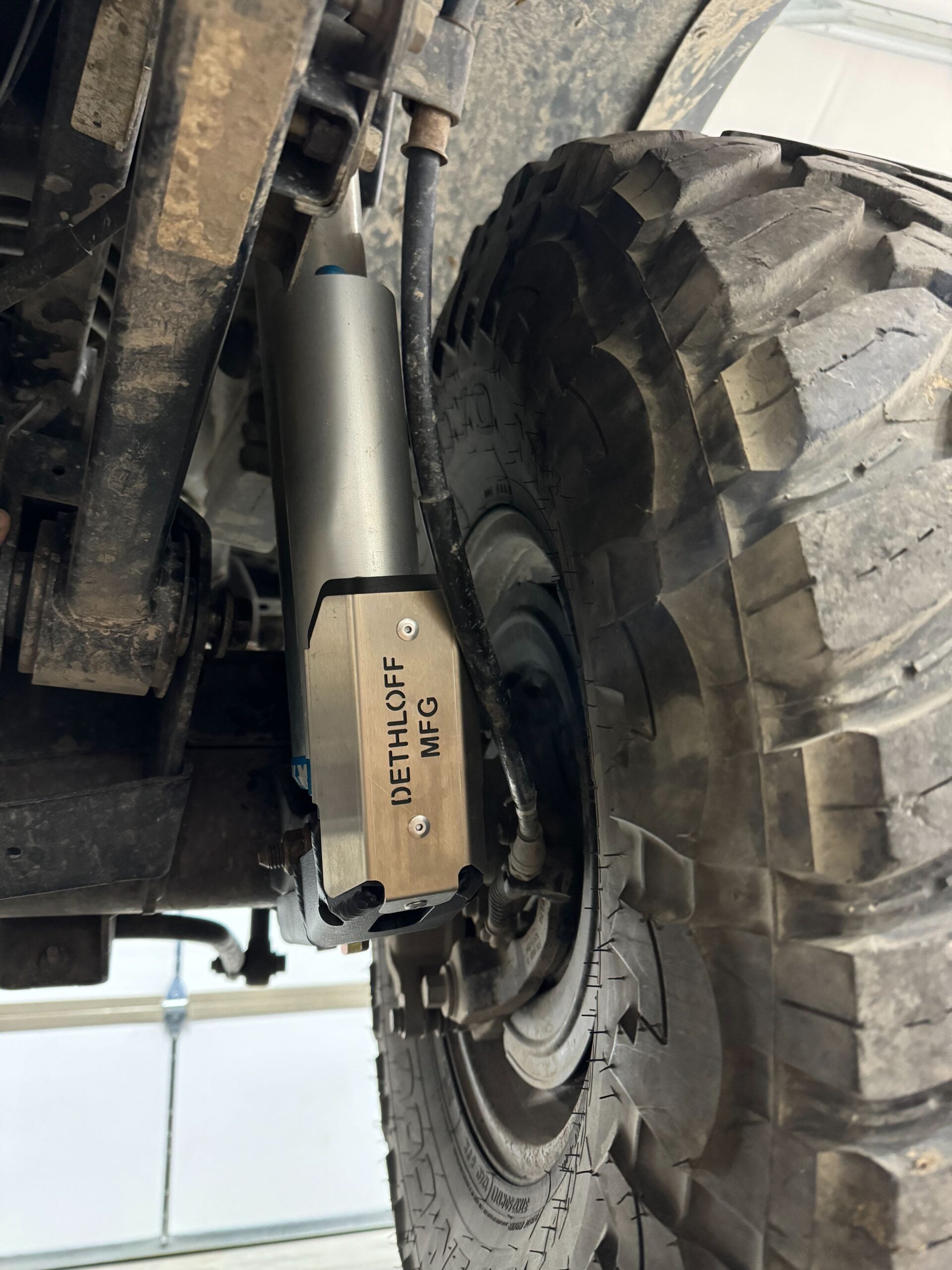

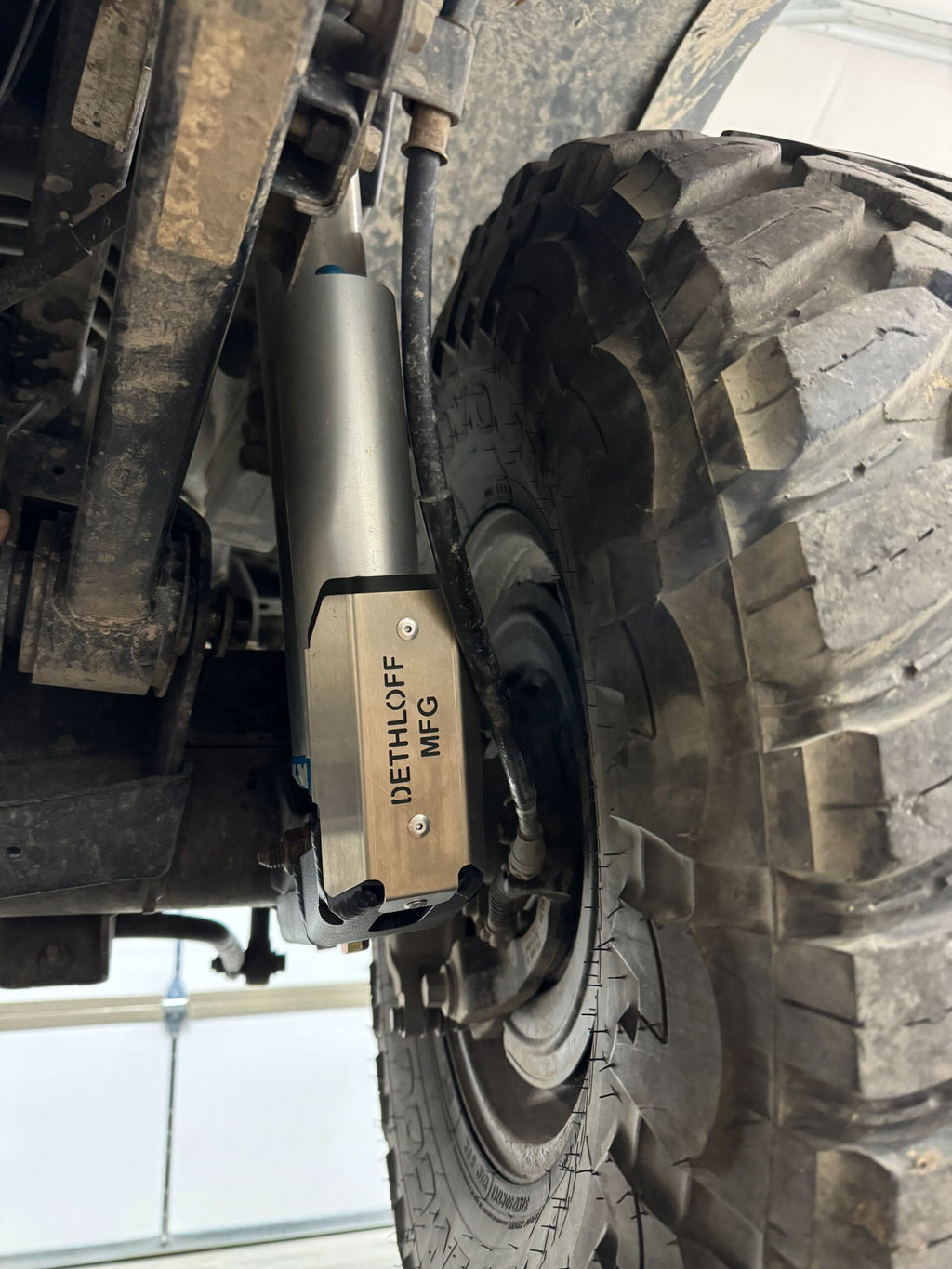

  • The fitted guard seen past the rear tire in the shop

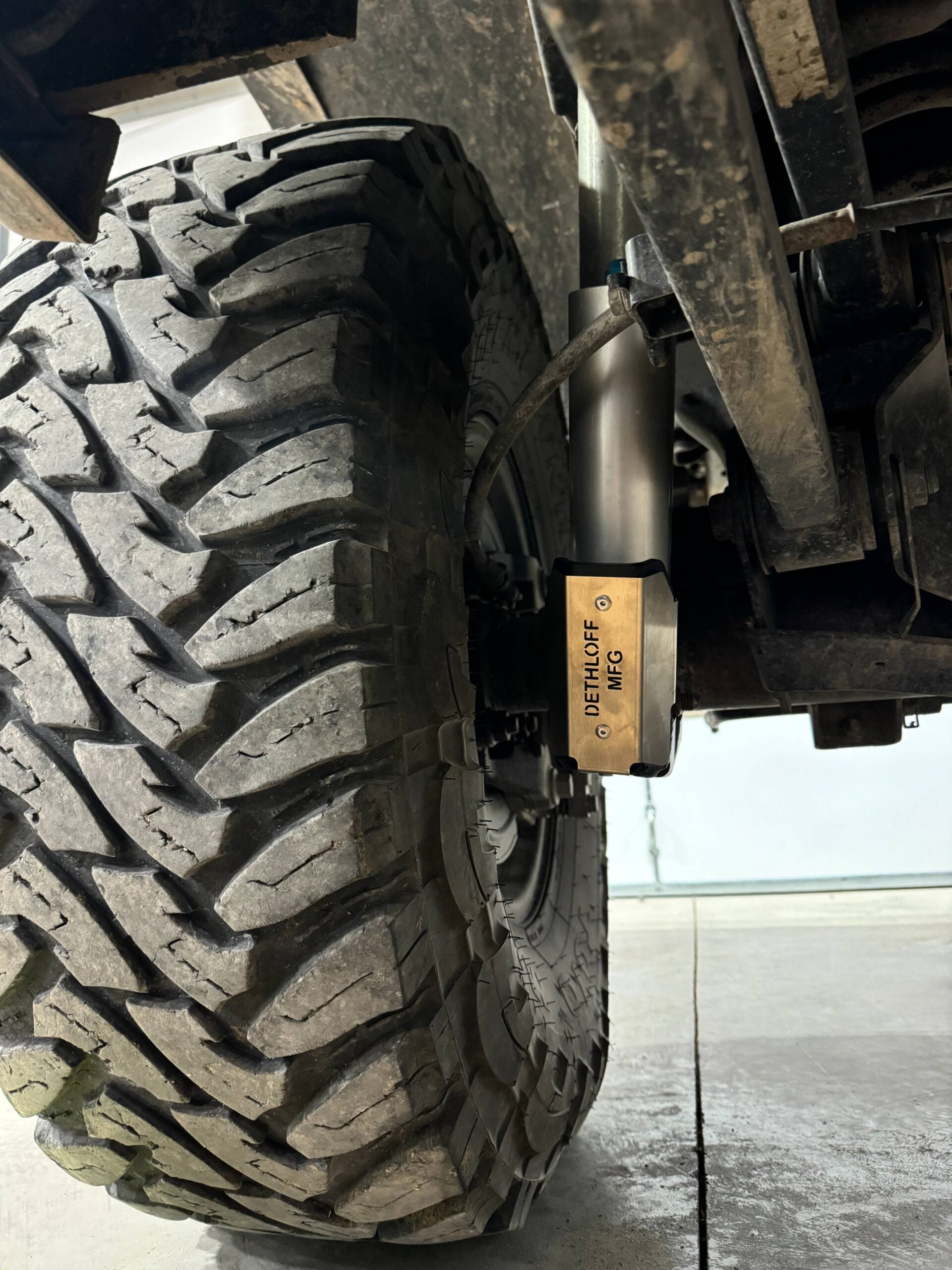

  • The fitted guard behind a muddy rear tire, seen from below
  • Four guards and a Dethloff box arranged on a bench, trucks in the shop behind
  • Four guards laid out on a steel bench with their clamp cutouts facing up
  • The four guards and a Dethloff box on the bench, seen from above
  • Guard fitted on the rear shock, seen from under the truck out onto red desert ground
  • Guard fitted beside a Fox shock, seen from under the rear axle
  • Under the rear of the truck with the guard in place behind the wheel
  • A hand holding the guard up against the shock body to show the fit
  • The guard shielding the lower body of a Fox shock, seen from under the axle
  • A hand fitting the guard around the shock above the tire
  • The guard bolted around a shock in the shop, badge visible above the blue shock body
  • The fitted guard seen past the rear tire in the shop
  • The fitted guard behind a muddy rear tire, seen from below
HD Rear Shock Guards: 2014-26 Ram 3500

HD Rear Shock Guards: 2014-26 Ram 3500

$329.00

Normally in stock; Allow ~3 days to ship

True, HD protection for the aftermarket shocks on your Ram 2500 and 3500! Unlike any of the light-duty gravel guards on the market, these skid plates offer robust 3/16″ steel construction with a stainless steel impact face to keep wear & impacts from turning your shocks or their guards into a rusty mess.

Structurally these guards are extremely robust, mounting directly to your truck’s axle bracketry and utilizing a load key that applies any impact load directly into the bracket, rather than into any of the hardware. These guards do not use the shock mounting bolt so shock install/removal/service is still easy!

Complete hand access is offered for Clicker Adjusters (if equipped) on your shock reservoirs.

A large gravel-drain port is built into the guard to ensure that any rocks/mud/sand that enters the guard is able to simply fall through and won’t hurt your shocks.

Compatible Shocks:

  • King 3.0" w/ Reservoir
  • King 2.5" w/ Reservoir
  • King 2.0"
  • Fox 3.0" w/ Reservoir
  • Fox 2.5" DSC w/ Reservoir
  • Fox 2.0"
  • Carbon 2.5" w/ Reservoir
  • Carbon 3.0" w/ Reservoir (Awaiting confirmation)
  • OEM shocks
